Text-to-Speech (TTS) Models - Architecture & Implementation

Historical Evolution

WaveNet (2016) - The Breakthrough

WaveNet was a key breakthrough developed by Google DeepMind. It revolutionized TTS by directly modeling the raw waveform of an audio signal.

Key innovations:

• Autoregressive generation: predicts one audio sample at a time
• Dilated causal convolutions for wide receptive fields
• Produced remarkably natural-sounding speech
• Set new standard for quality

Limitations:

• Very slow (one sample at a time)
• Computationally expensive

Tacotron (2017) - End-to-End Learning

Tacotron introduced end-to-end TTS without requiring complex handcrafted features:

• Sequence-to-sequence architecture with attention
• Encoder-Decoder model
• Input: text → Output: mel-spectrogram → Vocoder → Audio

Benefits:

• Faster than WaveNet
• Learned attention mechanisms
• Natural prosody (pitch, timing)

Deep Voice (2017) - Production-Ready TTS

Deep Voice was constructed entirely from deep neural networks:

• Simplified traditional TTS pipelines
• Components:

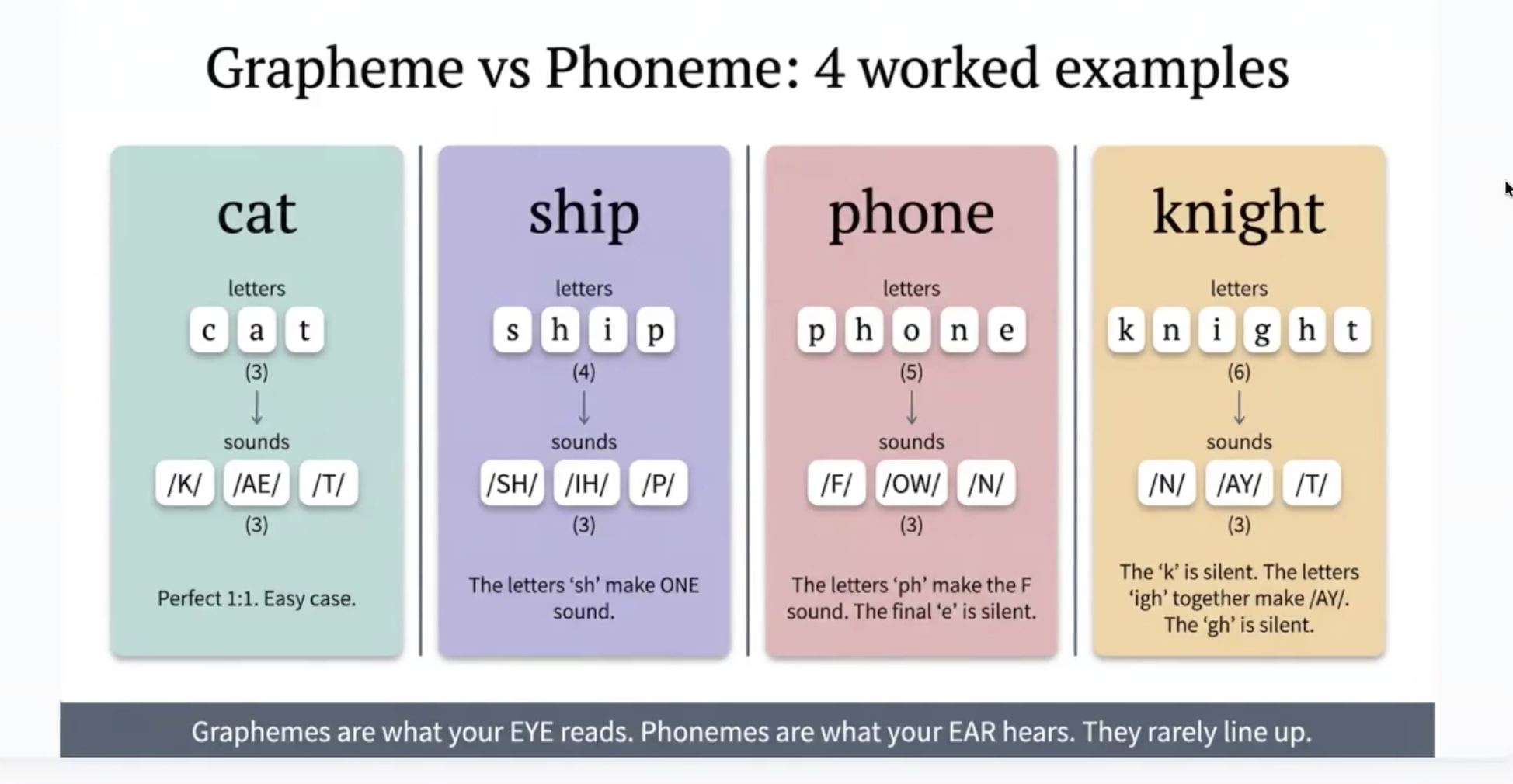

  1. Grapheme-to-phoneme model - Converts text to phonetic representation
  2. Segmentation model - Training data annotation
  3. Phoneme duration prediction model - How long each sound
  4. Fundamental frequency (F0) prediction model - Pitch prediction
  5. Audio synthesis model - WaveNet variant for actual synthesis

Achievements:

• Real-time inference
• Significant speedups over WaveNet
• Production-quality audio

KOKORO - Latent Diffusion TTS

KOKORO is a cutting-edge TTS system using latent space manipulation and adversarial training.

Pipeline

1. Text to Latent Representation

   • Input: “Hello, how are you?”
   • Maps text to latent space capturing speech style and semantics
   • Includes phonetic and linguistic characteristics

2. Style Manipulation (Latent Diffusion)

   • Adjusts latent variables for speech style
   • Controls: tone, pitch, speed, emotion
   • Example: cheerful vs. formal tone

3. Adversarial Training (Discriminator Feedback)

   • Uses WavLM (large speech model) as discriminator
   • Refines generated speech for naturalness
   • Improves quality iteratively

4. Direct Waveform Generation

   • Uses ISTFTNet to generate audio waveform directly
   • Skips intermediate representations (spectrogram)
   • Produces high-quality output

Key Features

• Streaming inference: 83 tokens per second
• CNN-based tokenizer for fast tokenization
• Efficient with good quality

Fish Speech - Slow/Fast Transformer Architecture

Fish Speech uses a two-transformer approach for text-to-speech.

Pipeline

1. Input Text

   • Text is tokenized into subword or word-level tokens

2. Slow Transformer

   • Text Embedding: Converts tokens to embeddings
   • Contextualization: Passes through transformer layers
   • Output: Abstract linguistic features (meaning-focused)

3. Fast Transformer

   • Feature Fusion: Combines Slow Transformer output with acoustic features
   • Acoustic Refinement: Adjusts output for acoustic details
   • Output: Refined speech features

4. Grouped Finite Scalar Quantization (GFSQ)

   • Feature Grouping: Groups features into categories
   • Scalar Quantization: Converts to efficient form
   • Codebook Indexing: Maps to codebook indices

5. Firefly-GAN (Vocoder)

   • Convolution Blocks: Processes quantized features
   • Output: Audio waveform reconstruction

6. Generated Audio

   • Final speech with natural intonation and rhythm

Key Features

• Two-stage processing (semantic → acoustic)
• Efficient quantization
• High-quality synthesis

---

Chatterbox TTS - Multi-Stage Pipeline

Chatterbox is an advanced TTS system with specialized components.

Pipeline

1. Text Processing: Tokenization

• EnTokenizer: Breaks text into tokens
• Example: “Hello, how are you today?” → [“Hello”, “how”, “are”, “you”, “today”, ”?“]

2. Core Sequence Modeling

• T3 Model: Fine-tuned Llama 3 transformer
• Processes tokens through neural network
• Understands structure, meaning, and intent
• Influences context, tone, and emotion

3. Audio Processing: Tokenization

• S3Tokenizer: Converts 16kHz reference audio into tokens
• Breaks audio into features: pitch, rhythm, loudness
• Creates “language” for audio processing

4. Voice Encoding: Speaker Identity

• Voice Encoder: Extracts speaker’s unique voice embedding
• Mel Spectrogram: Analyzes audio frequency components
• Creates “signature” for specific speaker

5. Conditioning Systems

• T3 Conditioning: Guides text tokens → speech tokens
• S3 Conditioning: Refines using reference speech and emotions
• Ensures emotional tone is matched

6. Speech Generation

• S3 Conditional Flow Matching: Generates high-quality acoustics
• S3Token2Mel Converter: Converts tokens to mel spectrograms
• S3Token2Wav Vocoder: Uses HiFiGAN and ConvRNN architecture
• Output: High-fidelity speech waveform

Key Features

• Multi-stage processing
• Flow-based generative model
• Advanced prosody modeling
• High-fidelity output

---

Orpheus TTS - Llama-Based Audio Generation

Orpheus adapts Llama-3B transformer for speech generation using a two-stage process.

Pipeline

Stage 1: Text-to-Token Generation

• Uses Llama-3B model adapted for speech
• Processes text through transformer layers
• Generates discrete audio tokens
• Employs causal attention mechanisms

Stage 2: Audio Synthesis

• Uses SNAC (Speech Neural Audio Codec)
• Decodes audio tokens into waveform
• SNAC uses hierarchical audio tokenization
• Multiple levels of tokens for accurate reconstruction
• Output: 24kHz audio

Key Features

• Based on large language model (Llama)
• Hierarchical tokenization (SNAC)
• 24kHz audio quality
• Efficient token-to-audio conversion

---

Higgs Audio - Unified Audio Tokenizer

Higgs Audio v2 introduces a unified tokenizer operating at just 25 frames per second.

Key Components

1. AudioVerse Dataset

• Over 10 million hours of audio
• Languages: English, Chinese (Mandarin), Korean, German, Spanish
• Includes: Speech, music, and sound events
• Automated annotation using multiple ASR and classification models

2. Unified Audio Tokenizer

• Operates at 25 frames per second (very efficient)
• Maintains quality vs. tokenizers with 2x bitrate
• 24 kHz high-fidelity across speech, music, and sound events
• Unified semantic and acoustic capture
• 2.0 kbps bitrate - significantly more efficient
• Non-diffusion encoder/decoder for fast batch inference

3. DualFFN Architecture

• Dual Feed-Forward Network - audio-specific expert adapter
• Preserves 91% of original LLM training speed
• Minimal computational overhead
• Significantly improves WER and speaker similarity

Key Features

• Unified semantic and acoustic tokenization
• Extremely efficient bitrate
• Works with speech, music, and sound events
• Fast batch inference

Parler TTS

• Uses GFPQ quantization
• Highly controllable voice characteristics
• Character-level voice descriptions

KittenTTS

• Fast, lightweight TTS
• Good for edge devices
• Open-source

Nari Labs TTS

• Open-source neural TTS
• Community-driven development

Piper TTS

• Fast, local neural TTS
• Optimized for Raspberry Pi 4
• Good for embedded systems

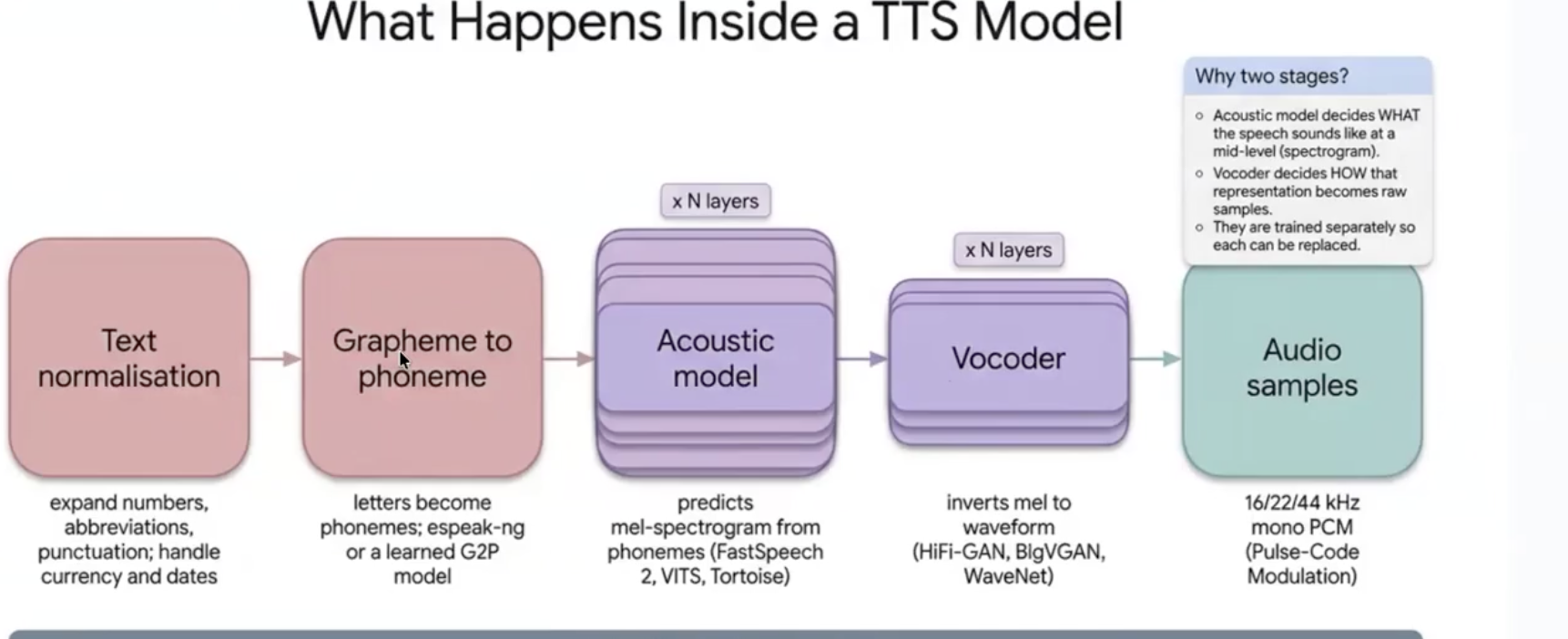

TTS System Components Comparison

Component	Purpose	Examples

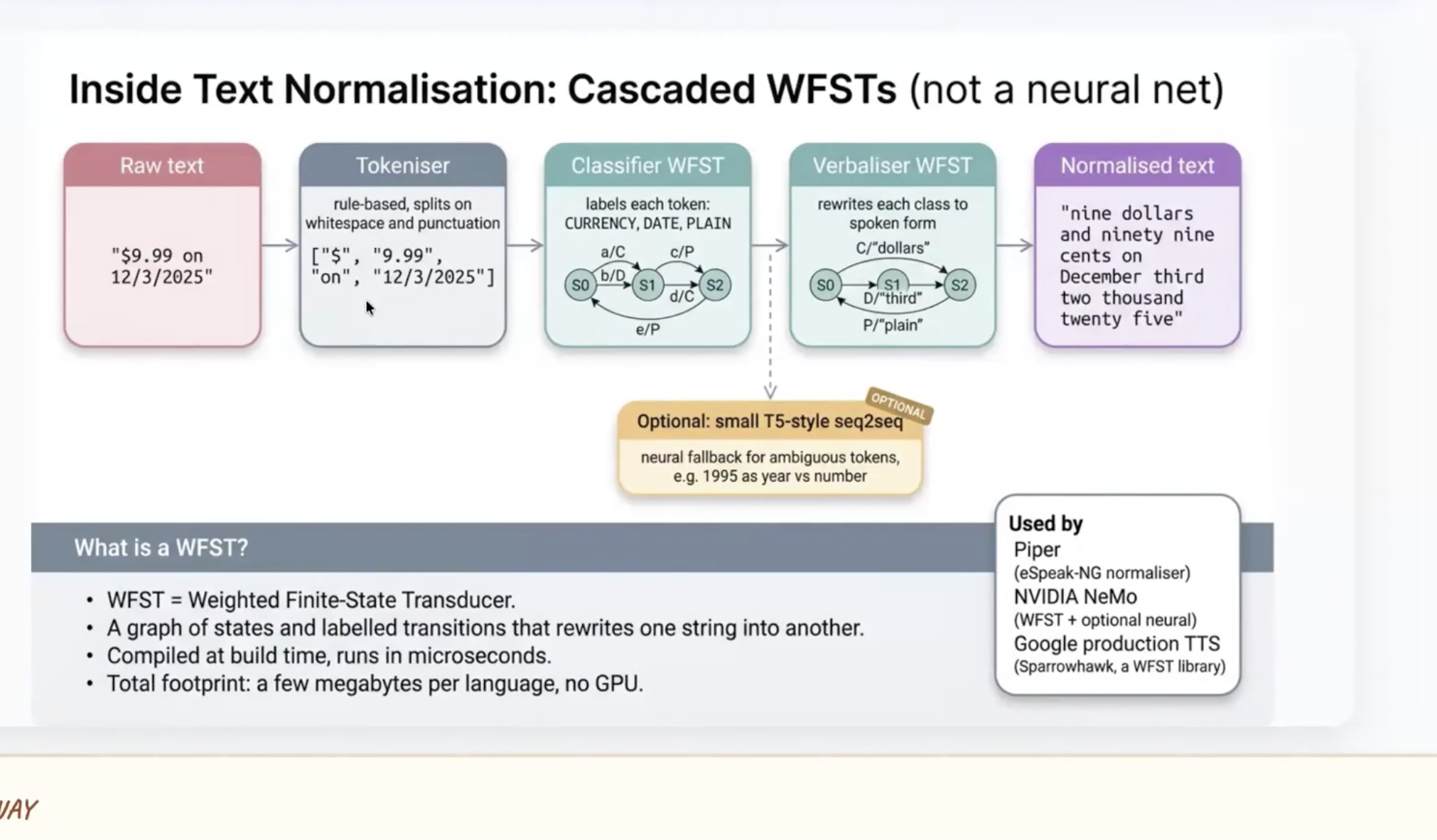

Text Processor	Normalizes text, handles special characters	Tokenizer, G2P converter

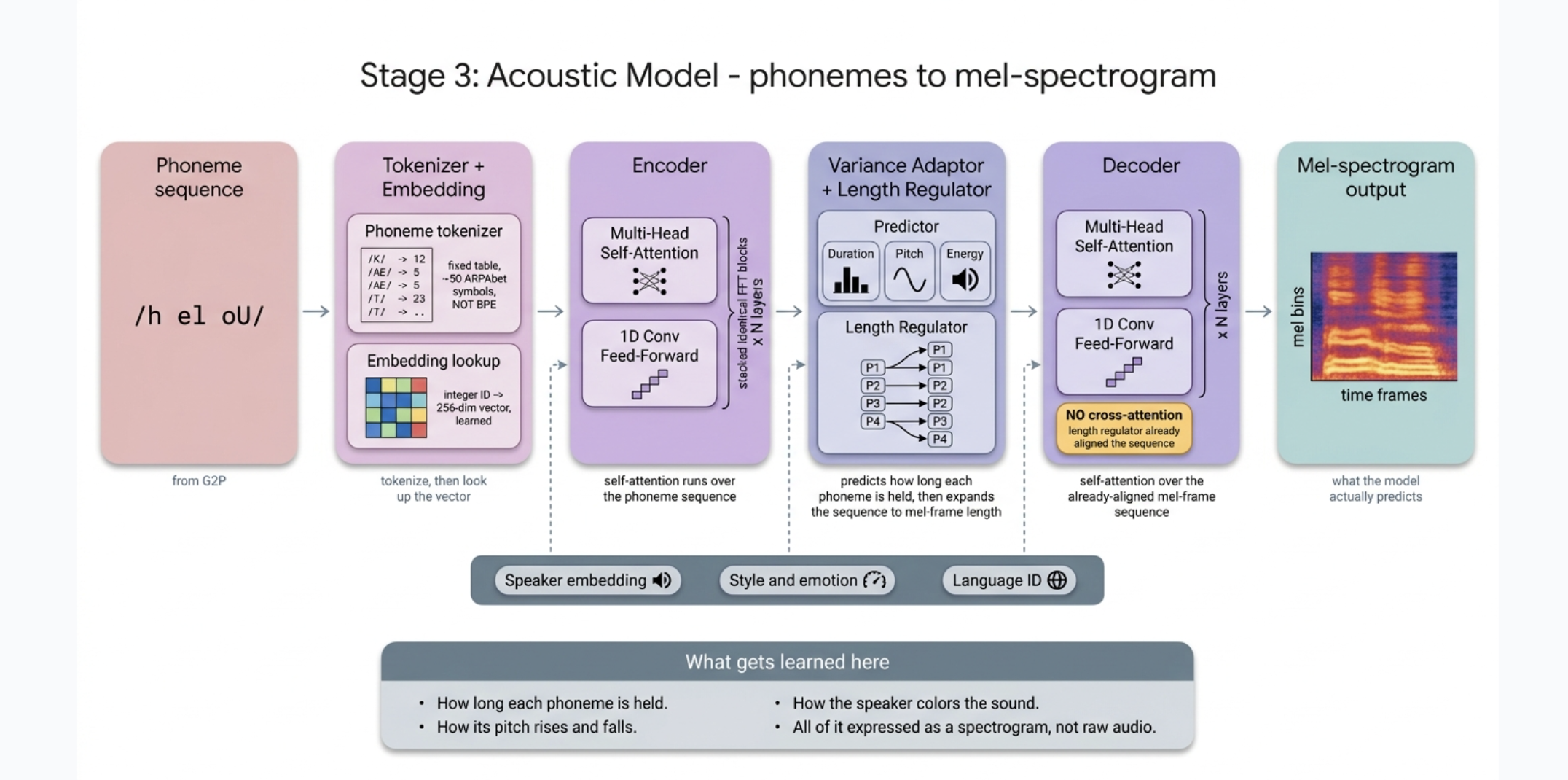

Acoustic Model	Maps text → acoustic features	Transformer, RNN
Duration Predictor	Predicts phoneme durations	Small transformer

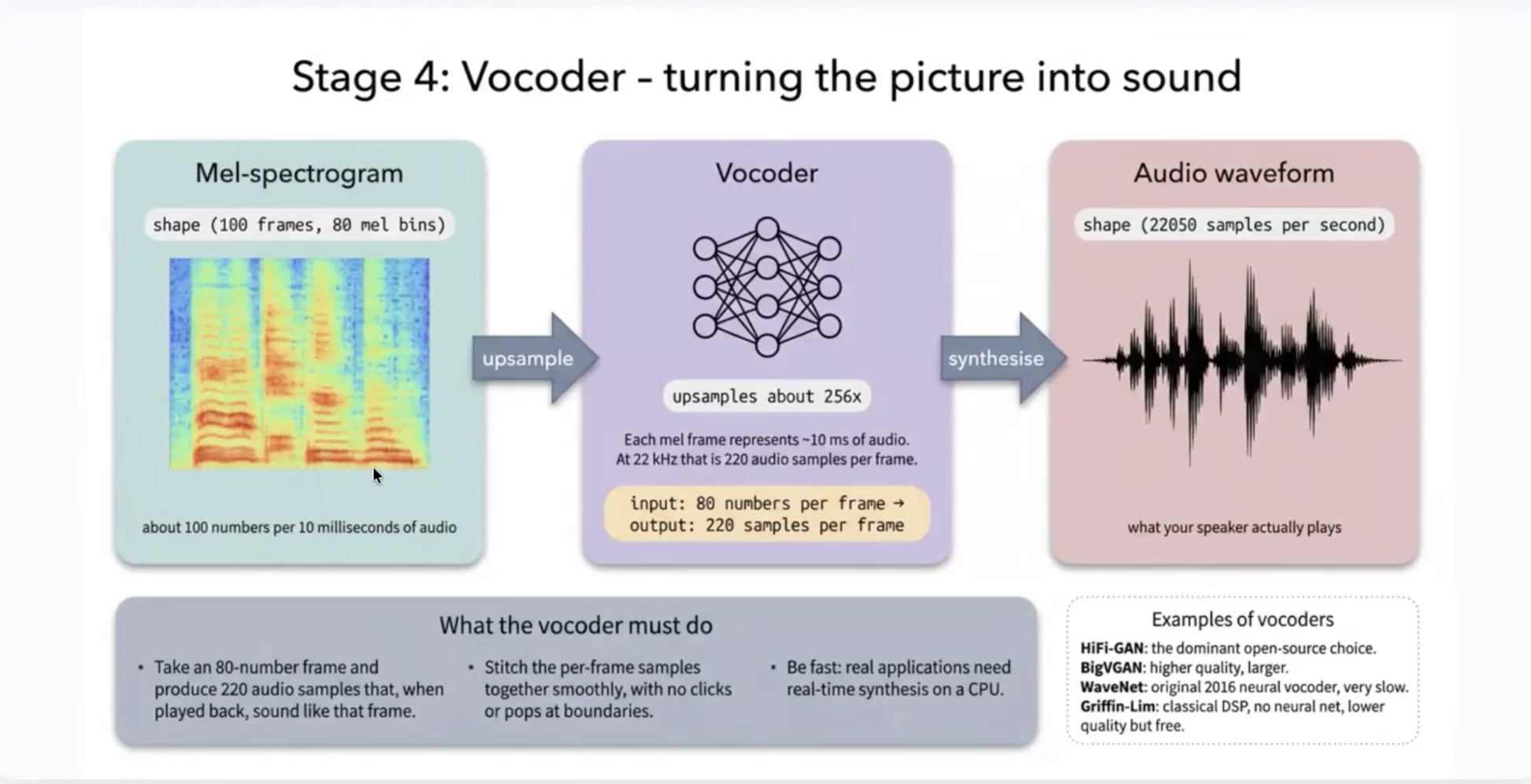

Vocoder	Converts features → waveform	HiFi-GAN, WaveGlow

Voice Cloning in TTS

Voice cloning allows TTS to generate speech in a specific person’s voice.

Approaches

1. Reference Audio Approach

   • Provide example audio of target speaker
   • Extract speaker embedding
   • Condition model on embedding

2. Speaker Adaptation

   • Fine-tune model on speaker’s audio
   • Learn speaker-specific parameters
   • More accurate but requires more data

3. Prompt Learning

   • Use recent speech context as prompt
   • Model learns to continue in same voice
   • Efficient, requires minimal data

Tools

• SpeechBrain - Speaker verification and adaptation
